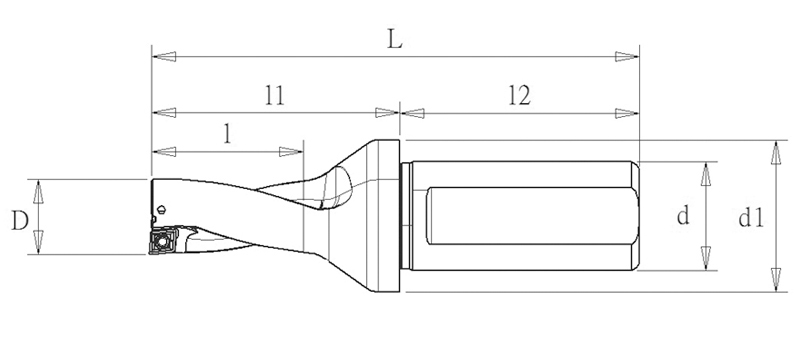

| Model No. | Indexable Rapid Drill Specification | Maximum Adjustment Limit |
Insert | Wrench | Screw of Insert | ||||||
| D | L | l | (l1) | l2 | d | d1 | |||||
| WDX13-C20-4D-55L | 13.0 | 114 | 55 | 70 | 44 | 20 | 28 | 0.35 | WDXT042004 | T5 | TS1604 |
| WDX13.5-C20-4D-57L | 13.5 | 116 | 57 | 72 | 44 | 20 | 28 | 0.30 | WDXT042004 | T5 | TS1604 |
| WDX14 -C20-4D-59L | 14.0 | 118 | 59 | 74 | 44 | 20 | 28 | 0.25 | WDXT042004 | T5 | TS1604 |
| WDX14.5-C20-4D-61L | 14.5 | 120 | 61 | 76 | 44 | 20 | 28 | 0.20 | WDXT042004 | T5 | TS1604 |
| WDX15-C20-4D-63L | 15.0 | 122 | 63 | 78 | 44 | 20 | 28 | 0.15 | WDXT042004 | T5 | TS1604 |
| WDX15.5-C20-4D-65L | 15.5 | 124 | 65 | 80 | 44 | 20 | 30 | 0.40 | WDXT052504 | T6 | TS2005 |
| WDX16-C20-4D-67L | 16.0 | 126 | 67 | 82 | 44 | 20 | 30 | 0.40 | WDXT052504 | T6 | TS2005 |
| WDX16.5-C20-4D-69L | 16.5 | 128 | 69 | 84 | 44 | 20 | 30 | 0.35 | WDXT052504 | T6 | TS2005 |
| WDX17-C20-4D-71L | 17.0 | 130 | 71 | 86 | 44 | 20 | 30 | 0.30 | WDXT052504 | T6 | TS2005 |
| WDX17.5-C25-4D-73L | 17.5 | 144 | 73 | 88 | 56 | 25 | 32 | 0.25 | WDXT052504 | T6 | TS2005 |
| WDX18-C25-4D-75L | 18.0 | 146 | 75 | 90 | 56 | 25 | 32 | 0.20 | WDXT052504 | T6 | TS2005 |
| WDX18.5-C25-4D-77L | 18.5 | 148 | 77 | 92 | 56 | 25 | 33 | 0.50 | WDXT063006 | T7 | TS2206 |
| WDX19-C25-4D-79L | 19.0 | 150 | 79 | 94 | 56 | 25 | 33 | 0.45 | WDXT063006 | T7 | TS2206 |
| WDX19.5-C25-4D-81L | 19.5 | 152 | 81 | 96 | 56 | 25 | 33 | 0.40 | WDXT063006 | T7 | TS2206 |
| WDX20-C25-4D-83L | 20.0 | 154 | 83 | 98 | 56 | 25 | 33 | 0.30 | WDXT063006 | T7 | TS2206 |
| WDX20.5-C25-4D-85L | 20.5 | 156 | 85 | 100 | 56 | 25 | 33 | 0.30 | WDXT063006 | T7 | TS2206 |
| WDX21-C25-4D-87L | 21.0 | 158 | 87 | 102 | 56 | 25 | 33 | 0.20 | WDXT063006 | T7 | TS2206 |
| WDX21.5-C25-4D-89L | 21.5 | 160 | 89 | 104 | 56 | 25 | 33 | 0.15 | WDXT063006 | T7 | TS2206 |
| WDX22-C25-4D-91L | 22.0 | 162 | 91 | 106 | 56 | 25 | 33 | 0.10 | WDXT063006 | T7 | TS2206 |
| WDX22.5-C25-4D-93L | 22.5 | 164 | 93 | 108 | 56 | 25 | 33 | 0.05 | WDXT063006 | T7 | TS2206 |
| WDX23-C25-4D-95L | 23.0 | 169 | 95 | 113 | 56 | 25 | 37 | 0.70 | WDXT073506 | T8 | TS2506 |
| WDX23.5-C25-4D-97L | 23.5 | 171 | 97 | 115 | 56 | 25 | 37 | 0.70 | WDXT073506 | T8 | TS2506 |
| WDX24-C25-4D-99L | 24.0 | 173 | 99 | 117 | 56 | 25 | 37 | 0.60 | WDXT073506 | T8 | TS2506 |
| WDX24.5-C25-4D-101L | 24.5 | 175 | 101 | 119 | 56 | 25 | 37 | 0.50 | WDXT073506 | T8 | TS2506 |
| WDX25-C25-4D-103L | 25.0 | 177 | 103 | 121 | 56 | 25 | 37 | 0.50 | WDXT073506 | T8 | TS2506 |
| WDX25.5-C32-4D-105L | 25.5 | 185 | 105 | 125 | 60 | 32 | 41 | 0.45 | WDXT073506 | T8 | TS2506 |
| WDX26-C32-4D-107L | 26.0 | 187 | 107 | 127 | 60 | 32 | 41 | 0.40 | WDXT073506 | T8 | TS2506 |
| WDX26.5-C32-4D-109L | 26.5 | 189 | 109 | 129 | 60 | 32 | 41 | 0.35 | WDXT073506 | T8 | TS2506 |
| WDX27-C32-4D-111L | 27.0 | 191 | 111 | 131 | 60 | 32 | 41 | 0.25 | WDXT073506 | T8 | TS2506 |
| WDX27.5-C32-4D-113L | 27.5 | 193 | 113 | 133 | 60 | 32 | 41 | 0.20 | WDXT073506 | T8 | TS2506 |
| WDX28-C32-4D-115L | 28.0 | 195 | 115 | 135 | 60 | 32 | 41 | 0.15 | WDXT073506 | T8 | TS2506 |
| WDX28.5-C32-4D-117L | 28.5 | 197 | 117 | 137 | 60 | 32 | 41 | 0.10 | WDXT073506 | T8 | TS2506 |
| Model No. | Indexable Rapid Drill Specification | Maximum Adjustment Limit |
Insert | Wrench | Screw of Insert | ||||||
| D | L | l | (l1) | l2 | d | d1 | |||||
| WDX29-C32-4D-120L | 29.0 | 201 | 120 | 141 | 60 | 32 | 50.0 | 1.00 | WDXT094008 | T15 | TS3507 |
| WDX29.5-C32-4D-122L | 29.5 | 203 | 122 | 143 | 60 | 32 | 50.0 | 0.95 | WDXT094008 | T15 | TS3507 |
| WDX30-C32-4D-124L | 30.0 | 208 | 124 | 148 | 60 | 32 | 54.0 | 0.90 | WDXT094008 | T15 | TS3507 |
| WDX31-C32-4D-128L | 31.0 | 212 | 128 | 152 | 60 | 32 | 54.0 | 0.80 | WDXT094008 | T15 | TS3507 |
| WDX32-C32-4D-132L | 32.0 | 216 | 132 | 156 | 60 | 32 | 54.0 | 0.70 | WDXT094008 | T15 | TS3507 |
| WDX30-C40-4D-124L | 30.0 | 218 | 124 | 148 | 70 | 40 | 54.0 | 0.90 | WDXT094008 | T15 | TS3507 |
| WDX31-C40-4D-128L | 31.0 | 222 | 128 | 152 | 70 | 40 | 54.0 | 0.80 | WDXT094008 | T15 | TS3507 |
| WDX32-C40-4D-132L | 32.0 | 226 | 132 | 156 | 70 | 40 | 54.0 | 0.70 | WDXT094008 | T15 | TS3507 |
| WDX33-C40-4D-136L | 33.0 | 230 | 136 | 160 | 70 | 40 | 54.0 | 0.55 | WDXT094008 | T15 | TS3507 |
| WDX34-C40-4D-140L | 34.0 | 234 | 140 | 164 | 70 | 40 | 54.0 | 0.45 | WDXT094008 | T15 | TS3507 |
| WDX35-C40-4D-144L | 35.0 | 238 | 144 | 168 | 70 | 40 | 54.0 | 0.35 | WDXT094008 | T15 | TS3507 |
| WDX36-C40-4D-148L | 36.0 | 242 | 148 | 172 | 70 | 40 | 54.0 | 0.20 | WDXT094008 | T15 | TS3507 |
| WDX37-C40-4D-153L | 37.0 | 253 | 153 | 183 | 70 | 40 | 49.5 | 1.00 | WDXT125012 | T20 | TS5011 |
| WDX38-C40-4D-157L | 38.0 | 257 | 157 | 187 | 70 | 40 | 49.5 | 1.00 | WDXT125012 | T20 | TS5011 |
| WDX39-C40-4D-161L | 39.0 | 261 | 161 | 191 | 70 | 40 | 49.5 | 0.90 | WDXT125012 | T20 | TS5011 |
| WDX40-C40-4D-165L | 40.0 | 265 | 165 | 195 | 70 | 40 | 49.5 | 0.80 | WDXT125012 | T20 | TS5011 |
| WDX41-C40-4D-169L | 41.0 | 269 | 169 | 199 | 70 | 40 | 49.5 | 0.70 | WDXT125012 | T20 | TS5011 |
| WDX42-C40-4D-173L | 42.0 | 273 | 173 | 203 | 70 | 40 | 49.5 | 0.60 | WDXT125012 | T20 | TS5011 |
| WDX43-C40-4D-177L | 43.0 | 277 | 177 | 207 | 70 | 40 | 49.5 | 0.50 | WDXT125012 | T20 | TS5011 |
| WDX44-C40-4D-181L | 44.0 | 281 | 181 | 211 | 70 | 40 | 49.5 | 0.50 | WDXT125012 | T20 | TS5011 |
| WDX45-C40-4D-185L | 45.0 | 285 | 185 | 215 | 70 | 40 | 49.5 | 0.40 | WDXT125012 | T20 | TS5011 |
| WDX46-C40-4D-189L | 46.0 | 289 | 189 | 219 | 70 | 40 | 49.5 | 1.50 | WDXT156012 | T25 | TS6015 |
| WDX47-C40-4D-193L | 47.0 | 293 | 193 | 223 | 70 | 40 | 49.5 | 1.40 | WDXT156012 | T25 | TS6015 |
| WDX48-C40-4D-197L | 48.0 | 297 | 197 | 227 | 70 | 40 | 49.5 | 1.30 | WDXT156012 | T25 | TS6015 |
| WDX49-C40-4D-201L | 49.0 | 301 | 201 | 231 | 70 | 40 | 49.5 | 1.20 | WDXT156012 | T25 | TS6015 |
| WDX50-C40-4D-205L | 50.0 | 305 | 205 | 235 | 70 | 40 | 49.5 | 1.10 | WDXT156012 | T25 | TS6015 |
| WDX51-C40-4D-209L | 51.0 | 309 | 209 | 239 | 70 | 40 | 49.5 | 1.00 | WDXT156012 | T25 | TS6015 |
| WDX52-C40-4D-213L | 52.0 | 313 | 213 | 243 | 70 | 40 | 50.5 | 0.90 | WDXT156012 | T25 | TS6015 |
| WDX53-C40-4D-217L | 53.0 | 317 | 217 | 247 | 70 | 40 | 51.5 | 0.80 | WDXT156012 | T25 | TS6015 |
| WDX54-C40-4D-221L | 54.0 | 321 | 221 | 251 | 70 | 40 | 52.5 | 0.60 | WDXT156012 | T25 | TS6015 |
| WDX55-C40-4D-225L | 55.0 | 325 | 225 | 255 | 70 | 40 | 53.5 | 0.50 | WDXT156012 | T25 | TS6015 |
| WDX56-C40-4D-232L | 56.0 | 334 | 232 | 264 | 70 | 40 | 54.0 | 2.00 | WDXT186012 | T25 | TS6015 |
| WDX57-C40-4D-236L | 57.0 | 338 | 236 | 268 | 70 | 40 | 55.0 | 1.80 | WDXT186012 | T25 | TS6015 |
| WDX58-C40-4D-240L | 58.0 | 342 | 240 | 272 | 70 | 40 | 56.0 | 1.70 | WDXT186012 | T25 | TS6015 |
| WDX59-C40-4D-244L | 59.0 | 346 | 244 | 276 | 70 | 40 | 57.0 | 1.60 | WDXT186012 | T25 | TS6015 |
| WDX60-C40-4D-248L | 60.0 | 350 | 248 | 280 | 70 | 40 | 58.0 | 1.50 | WDXT186012 | T25 | TS6015 |
| WDX61-C40-4D-252L | 61.0 | 354 | 252 | 284 | 70 | 40 | 59.0 | 1.40 | WDXT186012 | T25 | TS6015 |
| WDX62-C40-4D-256L | 62.0 | 358 | 256 | 288 | 70 | 40 | 60.0 | 1.30 | WDXT186012 | T25 | TS6015 |
| WDX63-C40-4D-260L | 63.0 | 362 | 260 | 292 | 70 | 40 | 61.0 | 1.20 | WDXT186012 | T25 | TS6015 |
| WDX64-C40-4D-256L | 64.0 | 343 | 256 | 273 | 70 | 40 | 62.5 | 1.00 | WDXT186012 | T25 | TS6015 |
| WDX65-C40-4D-260L | 65.0 | 345 | 260 | 275 | 70 | 40 | 63.5 | 0.90 | WDXT186012 | T25 | TS6015 |
| WDX66-C40-4D-264L | 66.0 | 347 | 264 | 277 | 70 | 40 | 64.5 | 0.70 | WDXT186012 | T25 | TS6015 |
| WDX67-C40-4D-268L | 67.0 | 349 | 268 | 279 | 70 | 40 | 65.5 | 0.60 | WDXT186012 | T25 | TS6015 |
| WDX68-C40-4D-272L | 68.0 | 351 | 272 | 281 | 70 | 40 | 66.5 | 0.50 | WDXT186012 | T25 | TS6015 |
| WDX19.7-C25-4D-78.8L | 19.7 | 156 | 59.1 | 100 | 56 | 25 | 32.5 | 0.40 | WDXT063006 | T7 | TS2206 |
