Indexable Rapid Drill WDX-3D

Model No.	Indexable Rapid Drill Specification							Maximum Adjustment Limit	Insert	Wrench	Screw of Insert

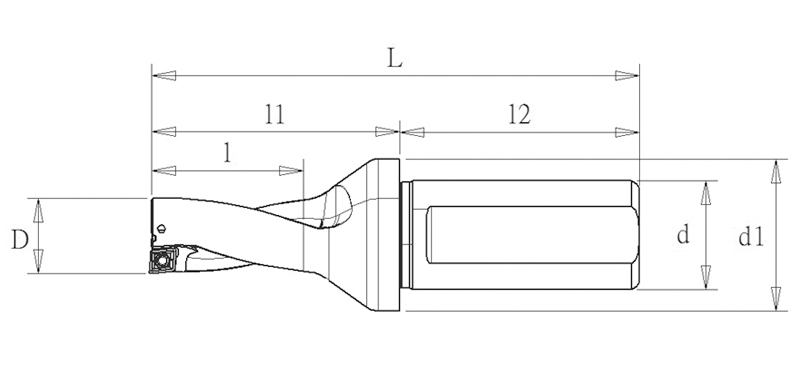

	D	L	l	(l1)	l2	d	d1
WDX13-C20-3D-42L	13.0	101.0	42.0	57.0	44	20	28	0.35	WDXT042004	T5	TS1604
WDX13.5-C20-3D-43.5L	13.5	102.5	43.5	58.5	44	20	28	0.30	WDXT042004	T5	TS1604
WDX14 -C20-3D-45L	14.0	104.0	45.0	60.0	44	20	28	0.25	WDXT042004	T5	TS1604
WDX14.5-C20-3D-46.5L	14.5	105.5	46.5	61.5	44	20	28	0.20	WDXT042004	T5	TS1604
WDX15-C20-3D-48L	15.0	107.0	48.0	63.0	44	20	28	0.15	WDXT042004	T5	TS1604
WDX15.5-C20-3D-49.5L	15.5	108.5	49.5	64.5	44	20	30	0.40	WDXT052504	T6	TS2005
WDX16-C20-3D-51L	16.0	110.0	51.0	66.0	44	20	30	0.40	WDXT052504	T6	TS2005
WDX16.5-C20-3D-52.5L	16.5	111.5	52.5	67.5	44	20	30	0.35	WDXT052504	T6	TS2005
WDX17-C20-3D-54L	17.0	113.0	54.0	69.0	44	20	30	0.30	WDXT052504	T6	TS2005
WDX17.5-C25-3D-55.5L	17.5	126.5	55.5	70.5	56	25	32	0.25	WDXT052504	T6	TS2005
WDX18-C25-3D-57L	18.0	128.0	57.0	72.0	56	25	32	0.20	WDXT052504	T6	TS2005
WDX18.5-C25-3D-58.5L	18.5	129.5	58.5	73.5	56	25	33	0.50	WDXT063006	T7	TS2206
WDX19-C25-3D-60L	19.0	131.0	60.0	75.0	56	25	33	0.45	WDXT063006	T7	TS2206
WDX19.5-C25-3D-61.5L	19.5	132.5	61.5	76.5	56	25	33	0.40	WDXT063006	T7	TS2206
WDX20-C25-3D-63L	20.0	134.0	63.0	78.0	56	25	33	0.30	WDXT063006	T7	TS2206
WDX20.5-C25-3D-64.5L	20.5	135.5	64.5	79.5	56	25	33	0.30	WDXT063006	T7	TS2206
WDX21-C25-3D-66L	21.0	137.0	66.0	81.0	56	25	33	0.20	WDXT063006	T7	TS2206
WDX21.5-C25-3D-67.5L	21.5	138.5	67.5	82.5	56	25	33	0.15	WDXT063006	T7	TS2206
WDX22-C25-3D-69L	22.0	140.0	69.0	84.0	56	25	33	0.10	WDXT063006	T7	TS2206
WDX22.5-C25-3D-70.5L	22.5	141.5	70.5	85.5	56	25	33	0.05	WDXT063006	T7	TS2206
WDX23-C25-3D-72L	23.0	146.0	72.0	90.0	56	25	37	0.70	WDXT073506	T8	TS2506
WDX23.5-C25-3D-73.5L	23.5	147.5	73.5	91.5	56	25	37	0.70	WDXT073506	T8	TS2506
WDX24-C25-3D-75L	24.0	149.0	75.0	93.0	56	25	37	0.60	WDXT073506	T8	TS2506
WDX24.5-C25-3D-76.5L	24.5	150.5	76.5	94.5	56	25	37	0.50	WDXT073506	T8	TS2506
WDX25-C25-3D-78L	25.0	152.0	78.0	96.0	56	25	37	0.50	WDXT073506	T8	TS2506
WDX25.5-C32-3D-79.5L	25.5	159.5	79.5	99.5	60	32	41	0.45	WDXT073506	T8	TS2506
WDX26-C32-3D-81L	26.0	161.0	81.0	101.0	60	32	41	0.40	WDXT073506	T8	TS2506
WDX26.5-C32-3D-82.5L	26.5	162.5	82.5	102.5	60	32	41	0.35	WDXT073506	T8	TS2506
WDX27-C32-3D-84L	27.0	164.0	84.0	104.0	60	32	41	0.25	WDXT073506	T8	TS2506
WDX27.5-C32-3D-85.5L	27.5	165.5	85.5	105.5	60	32	41	0.20	WDXT073506	T8	TS2506
WDX28-C32-3D-87L	28.0	167.0	87.0	107.0	60	32	41	0.15	WDXT073506	T8	TS2506
WDX28.5-C32-3D-88.5L	28.5	168.5	88.5	108.5	60	32	41	0.10	WDXT073506	T8	TS2506



Model No.	Indexable Rapid Drill Specification							Maximum Adjustment Limit	Insert	Wrench	Screw of Insert
	D	L	l	(l1)	l2	d	d1
WDX29-C32-3D-91L	29	172	91	112	60	32	50	1.00	WDXT094008	T15	TS3507
WDX29.5-C32-3D-92.5L	29.5	173.5	92.5	113.5	60	32	50	0.95	WDXT094008	T15	TS3507
WDX30-C32-3D-94L	30	178	94	118	60	32	54	0.90	WDXT094008	T15	TS3507
WDX31-C32-3D-97L	31	181	97	121	60	32	54	0.80	WDXT094008	T15	TS3507
WDX32-C32-3D-100L	32	184	100	124	60	32	54	0.70	WDXT094008	T15	TS3507
WDX30-C40-3D-94L	30	188	94	118	70	40	54	0.90	WDXT094008	T15	TS3507
WDX31-C40-3D-97L	31	191	97	121	70	40	54	0.80	WDXT094008	T15	TS3507
WDX32-C40-3D-100L	32	194	100	124	70	40	54	0.70	WDXT094008	T15	TS3507
WDX33-C40-3D-103L	33	197	103	127	70	40	54	0.55	WDXT094008	T15	TS3507
WDX34-C40-3D-106L	34	200	106	130	70	40	54	0.45	WDXT094008	T15	TS3507
WDX35-C40-3D-109L	35	203	109	133	70	40	54	0.35	WDXT094008	T15	TS3507
WDX36-C40-3D-112L	36	206	112	136	70	40	54	0.20	WDXT094008	T15	TS3507
WDX37-C40-3D-116L	37	216	116	146	70	40	49.5	1.00	WDXT125012	T20	TS5011
WDX38-C40-3D-119L	38	219	119	149	70	40	49.5	1.00	WDXT125012	T20	TS5011
WDX39-C40-3D-122L	39	222	122	152	70	40	49.5	0.90	WDXT125012	T20	TS5011
WDX40-C40-3D-125L	40	225	125	155	70	40	49.5	0.80	WDXT125012	T20	TS5011
WDX41-C40-3D-128L	41	228	128	158	70	40	49.5	0.70	WDXT125012	T20	TS5011
WDX42-C40-3D-131L	42	231	131	161	70	40	49.5	0.60	WDXT125012	T20	TS5011
WDX43-C40-3D-134L	43	234	134	164	70	40	49.5	0.50	WDXT125012	T20	TS5011
WDX44-C40-3D-137L	44	237	137	167	70	40	49.5	0.50	WDXT125012	T20	TS5011
WDX45-C40-3D-140L	45	240	140	170	70	40	49.5	0.40	WDXT125012	T20	TS5011
WDX46-C40-3D-143L	46	243	143	173	70	40	49.5	1.50	WDXT156012	T25	TS6015
WDX47-C40-3D-146L	47	246	146	176	70	40	49.5	1.40	WDXT156012	T25	TS6015
WDX48-C40-3D-149L	48	249	149	179	70	40	49.5	1.30	WDXT156012	T25	TS6015
WDX49-C40-3D-152L	49	252	152	182	70	40	49.5	1.20	WDXT156012	T25	TS6015
WDX50-C40-3D-155L	50	255	155	185	70	40	49.5	1.10	WDXT156012	T25	TS6015
WDX51-C40-3D-158L	51	258	158	188	70	40	49.5	1.00	WDXT156012	T25	TS6015
WDX52-C40-3D-161L	52	261	161	191	70	40	50.5	0.90	WDXT156012	T25	TS6015
WDX53-C40-3D-164L	53	264	164	194	70	40	51.5	0.80	WDXT156012	T25	TS6015
WDX54-C40-3D-167L	54	267	167	197	70	40	52.5	0.60	WDXT156012	T25	TS6015
WDX55-C40-3D-170L	55	270	170	200	70	40	53.5	0.50	WDXT156012	T25	TS6015
WDX56-C40-3D-176L	56	278	176	208	70	40	54	2.00	WDXT186012	T25	TS6015
WDX57-C40-3D-179L	57	281	179	211	70	40	55	1.80	WDXT186012	T25	TS6015
WDX58-C40-3D-182L	58	284	182	214	70	40	56	1.70	WDXT186012	T25	TS6015
WDX59-C40-3D-185L	59	287	185	217	70	40	57	1.60	WDXT186012	T25	TS6015
WDX60-C40-3D-188L	60	290	188	220	70	40	58	1.50	WDXT186012	T25	TS6015
WDX61-C40-3D-191L	61	293	191	223	70	40	59	1.40	WDXT186012	T25	TS6015
WDX62-C40-3D-194L	62	296	194	226	70	40	60	1.30	WDXT186012	T25	TS6015
WDX63-C40-3D-197L	63	299	197	229	70	40	61	1.20	WDXT186012	T25	TS6015
WDX64-C40-3D-200L	64	302	200	232	70	40	62	1.00	WDXT186012	T25	TS6015
WDX65-C40-3D-203L	65	305	203	235	70	40	63	0.90	WDXT186012	T25	TS6015
WDX66-C40-3D-206L	66	308	206	238	70	40	64	0.70	WDXT186012	T25	TS6015
WDX67-C40-3D-209L	67	311	209	241	70	40	65	0.60	WDXT186012	T25	TS6015
WDX68-C40-3D-212L	68	314	212	244	70	40	66	0.50	WDXT186012	T25	TS6015
WDX14.3-C20-3D-43L	14.3	122	42.9	66	56	20	32.5	0.25	WDXT042004	T5	TS1604
WDX24.7-C25-3D-74.1L	24.7	156	74.1	96	60	25	39	0.50	WDXT073506	T8	TS2506
