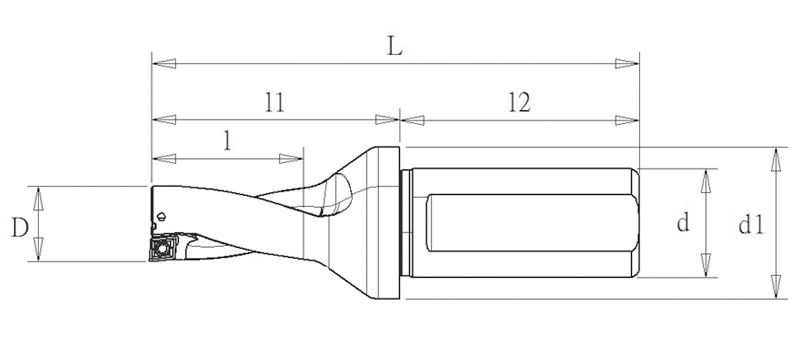

| Model No. | Indexable Rapid Drill Specification | Maximum Adjustment Limit |
Insert | Wrench | Screw of Insert | ||||||
| D | L | l | (l1) | l2 | d | d1 | |||||
| WDX13-C20-5D-68L | 13.0 | 127.0 | 68.0 | 83.0 | 44 | 20 | 28 | 0.35 | WDXT042004 | T5 | TS1604 |
| WDX13.5-C20-5D-70.5L | 13.5 | 129.5 | 70.5 | 85.5 | 44 | 20 | 28 | 0.30 | WDXT042004 | T5 | TS1604 |
| WDX14 -C20-5D-73L | 14.0 | 132.0 | 73.0 | 88.0 | 44 | 20 | 28 | 0.25 | WDXT042004 | T5 | TS1604 |
| WDX14.5-C20-5D-75.5L | 14.5 | 134.5 | 75.5 | 90.5 | 44 | 20 | 28 | 0.20 | WDXT042004 | T5 | TS1604 |
| WDX15-C20-5D-78L | 15.0 | 137.0 | 78.0 | 93.0 | 44 | 20 | 28 | 0.15 | WDXT042004 | T5 | TS1604 |
| WDX15.5-C20-5D-80.5L | 15.5 | 139.5 | 80.5 | 95.5 | 44 | 20 | 30 | 0.40 | WDXT052504 | T6 | TS2005 |
| WDX16-C20-5D-83L | 16.0 | 142.0 | 83.0 | 98.0 | 44 | 20 | 30 | 0.40 | WDXT052504 | T6 | TS2005 |
| WDX16.5-C20-5D-85.5L | 16.5 | 144.5 | 85.5 | 100.5 | 44 | 20 | 30 | 0.35 | WDXT052504 | T6 | TS2005 |
| WDX17-C20-5D-88L | 17.0 | 147.0 | 88.0 | 103.0 | 44 | 20 | 30 | 0.30 | WDXT052504 | T6 | TS2005 |
| WDX17.5-C25-5D-90.5L | 17.5 | 161.5 | 90.5 | 105.5 | 56 | 25 | 32 | 0.25 | WDXT052504 | T6 | TS2005 |
| WDX18-C25-5D-93L | 18.0 | 164.0 | 93.0 | 108.0 | 56 | 25 | 32 | 0.20 | WDXT052504 | T6 | TS2005 |
| WDX18.5-C25-5D-95.5L | 18.5 | 166.5 | 95.5 | 110.5 | 56 | 25 | 33 | 0.50 | WDXT063006 | T7 | TS2206 |
| WDX19-C25-5D-98L | 19.0 | 169.0 | 98.0 | 113.0 | 56 | 25 | 33 | 0.45 | WDXT063006 | T7 | TS2206 |
| WDX19.5-C25-5D-100.5L | 19.5 | 171.5 | 100.5 | 115.5 | 56 | 25 | 33 | 0.40 | WDXT063006 | T7 | TS2206 |
| WDX20-C25-5D-103L | 20.0 | 174.0 | 103.0 | 118.0 | 56 | 25 | 33 | 0.30 | WDXT063006 | T7 | TS2206 |
| WDX20.5-C25-5D-105.5L | 20.5 | 176.5 | 105.5 | 120.5 | 56 | 25 | 33 | 0.30 | WDXT063006 | T7 | TS2206 |
| WDX21-C25-5D-108L | 21.0 | 179.0 | 108.0 | 123.0 | 56 | 25 | 33 | 0.20 | WDXT063006 | T7 | TS2206 |
| WDX21.5-C25-5D-110.5L | 21.5 | 181.5 | 110.5 | 125.5 | 56 | 25 | 33 | 0.15 | WDXT063006 | T7 | TS2206 |
| WDX22-C25-5D-113L | 22.0 | 184.0 | 113.0 | 128.0 | 56 | 25 | 33 | 0.10 | WDXT063006 | T7 | TS2206 |
| WDX22.5-C25-5D-115.5L | 22.5 | 186.5 | 115.5 | 130.5 | 56 | 25 | 33 | 0.05 | WDXT063006 | T7 | TS2206 |
| WDX23-C25-5D-118L | 23.0 | 192.0 | 118.0 | 136.0 | 56 | 25 | 37 | 0.70 | WDXT073506 | T8 | TS2506 |
| WDX23.5-C25-5D-120.5L | 23.5 | 194.5 | 120.5 | 138.5 | 56 | 25 | 37 | 0.70 | WDXT073506 | T8 | TS2506 |
| WDX24-C25-5D-123L | 24.0 | 197.0 | 123.0 | 141.0 | 56 | 25 | 37 | 0.60 | WDXT073506 | T8 | TS2506 |
| WDX24.5-C25-5D-125.5L | 24.5 | 199.5 | 125.5 | 143.5 | 56 | 25 | 37 | 0.50 | WDXT073506 | T8 | TS2506 |
| WDX25-C25-5D-128L | 25.0 | 202.0 | 128.0 | 146.0 | 56 | 25 | 37 | 0.50 | WDXT073506 | T8 | TS2506 |
| WDX25.5-C32-5D-127.5L | 25.5 | 209.0 | 127.5 | 149.0 | 60 | 32 | 39 | 0.45 | WDXT073506 | T8 | TS2506 |
| WDX26-C32-5D-133L | 26.0 | 213.0 | 133.0 | 153.0 | 60 | 32 | 41 | 0.40 | WDXT073506 | T8 | TS2506 |
| WDX26.5-C32-5D-132.5L | 26.5 | 219.0 | 132.5 | 159.0 | 60 | 32 | 39 | 0.35 | WDXT073506 | T8 | TS2506 |
| WDX27-C32-5D-138L | 27.0 | 218.0 | 138.0 | 158.0 | 60 | 32 | 41 | 0.25 | WDXT073506 | T8 | TS2506 |
| WDX27.5-C32-5D-137.5L | 27.5 | 224.0 | 137.5 | 164.0 | 60 | 32 | 39 | 0.20 | WDXT073506 | T8 | TS2506 |
| WDX28-C32-5D-143L | 28.0 | 223.0 | 143.0 | 163.0 | 60 | 32 | 41 | 0.15 | WDXT073506 | T8 | TS2506 |
| WDX28.5-C32-5D-142.5L | 28.5 | 229.0 | 142.5 | 169.0 | 60 | 32 | 39 | 0.10 | WDXT073506 | T8 | TS2506 |
| Model No. | Indexable Rapid Drill Specification | Maximum Adjustment Limit |
Insert | Wrench | Screw of Insert | ||||||
| D | L | l | (l1) | l2 | d | d1 | |||||
| WDX29-C32-5D-149L | 29.0 | 230.0 | 149.0 | 170.0 | 60 | 32 | 50 | 1.00 | WDXT094008 | T15 | TS3507 |
| WDX29.5-C32-5D-147.5L | 29.5 | 234.0 | 147.5 | 174.0 | 60 | 32 | 39 | 0.95 | WDXT094008 | T15 | TS3507 |
| WDX30-C32-5D-154L | 30.0 | 238.0 | 154.0 | 178.0 | 60 | 32 | 54 | 0.90 | WDXT094008 | T15 | TS3507 |
| WDX31-C32-5D-159L | 31.0 | 243.0 | 159.0 | 183.0 | 60 | 32 | 54 | 0.80 | WDXT094008 | T15 | TS3507 |
| WDX32-C32-5D-164L | 32.0 | 248.0 | 164.0 | 188.0 | 60 | 32 | 54 | 0.70 | WDXT094008 | T15 | TS3507 |
| WDX30-C40-5D-154L | 30.0 | 248.0 | 154.0 | 178.0 | 70 | 40 | 54 | 0.90 | WDXT094008 | T15 | TS3507 |
| WDX31-C40-5D-159L | 31.0 | 253.0 | 159.0 | 183.0 | 70 | 40 | 54 | 0.80 | WDXT094008 | T15 | TS3507 |
| WDX32-C40-5D-164L | 32.0 | 258.0 | 164.0 | 188.0 | 70 | 40 | 54 | 0.70 | WDXT094008 | T15 | TS3507 |
| WDX33-C40-5D-169L | 33.0 | 263.0 | 169.0 | 193.0 | 70 | 40 | 54 | 0.55 | WDXT094008 | T15 | TS3507 |
| WDX34-C40-5D-174L | 34.0 | 268.0 | 174.0 | 198.0 | 70 | 40 | 54 | 0.45 | WDXT094008 | T15 | TS3507 |
| WDX35-C40-5D-179L | 35.0 | 273.0 | 179.0 | 203.0 | 70 | 40 | 54 | 0.35 | WDXT094008 | T15 | TS3507 |
| WDX36-C40-5D-184L | 36.0 | 278.0 | 184.0 | 208.0 | 70 | 40 | 54 | 0.20 | WDXT094008 | T15 | TS3507 |
| WDX37-C40-5D-190L | 37.0 | 290 | 190 | 220 | 70 | 40 | 49.5 | 1.00 | WDXT125012 | T20 | TS5011 |
| WDX38-C40-5D-195L | 38.0 | 295 | 195 | 225 | 70 | 40 | 49.5 | 1.00 | WDXT125012 | T20 | TS5011 |
| WDX39-C40-5D-200L | 39.0 | 300 | 200 | 230 | 70 | 40 | 49.5 | 0.90 | WDXT125012 | T20 | TS5011 |
| WDX40-C40-5D-205L | 40.0 | 305 | 205 | 235 | 70 | 40 | 49.5 | 0.80 | WDXT125012 | T20 | TS5011 |
| WDX41-C40-5D-210L | 41.0 | 310 | 210 | 240 | 70 | 40 | 49.5 | 0.70 | WDXT125012 | T20 | TS5011 |
| WDX42-C40-5D-215L | 42.0 | 315 | 215 | 245 | 70 | 40 | 49.5 | 0.60 | WDXT125012 | T20 | TS5011 |
| WDX43-C40-5D-220L | 43.0 | 320 | 220 | 250 | 70 | 40 | 49.5 | 0.50 | WDXT125012 | T20 | TS5011 |
| WDX44-C40-5D-225L | 44.0 | 325 | 225 | 255 | 70 | 40 | 49.5 | 0.50 | WDXT125012 | T20 | TS5011 |
| WDX45-C40-5D-230L | 45.0 | 330 | 230 | 260 | 70 | 40 | 49.5 | 0.40 | WDXT125012 | T20 | TS5011 |
| WDX46-C40-5D-235L | 46.0 | 335 | 235 | 265 | 70 | 40 | 49.5 | 1.50 | WDXT156012 | T25 | TS6015 |
| WDX47-C40-5D-240L | 47.0 | 340 | 240 | 270 | 70 | 40 | 49.5 | 1.40 | WDXT156012 | T25 | TS6015 |
| WDX48-C40-5D-245L | 48.0 | 345 | 245 | 275 | 70 | 40 | 49.5 | 1.30 | WDXT156012 | T25 | TS6015 |
| WDX49-C40-5D-250L | 49.0 | 350 | 250 | 280 | 70 | 40 | 49.5 | 1.20 | WDXT156012 | T25 | TS6015 |
| WDX50-C40-5D-255L | 50.0 | 355 | 255 | 285 | 70 | 40 | 49.5 | 1.10 | WDXT156012 | T25 | TS6015 |
| WDX51-C40-5D-260L | 51.0 | 360 | 260 | 290 | 70 | 40 | 49.5 | 1.00 | WDXT156012 | T25 | TS6015 |
| WDX52-C40-5D-265L | 52.0 | 365 | 265 | 295 | 70 | 40 | 50.5 | 0.90 | WDXT156012 | T25 | TS6015 |
| WDX53-C40-5D-270L | 53.0 | 370 | 270 | 300 | 70 | 40 | 51.5 | 0.80 | WDXT156012 | T25 | TS6015 |
| WDX54-C40-5D-275L | 54.0 | 375 | 275 | 305 | 70 | 40 | 52.5 | 0.60 | WDXT156012 | T25 | TS6015 |
| WDX55-C40-5D-280L | 55.0 | 380 | 280 | 310 | 70 | 40 | 53.5 | 0.50 | WDXT156012 | T25 | TS6015 |
