Tool Holder-MTJN

Tool Holder-MTJN

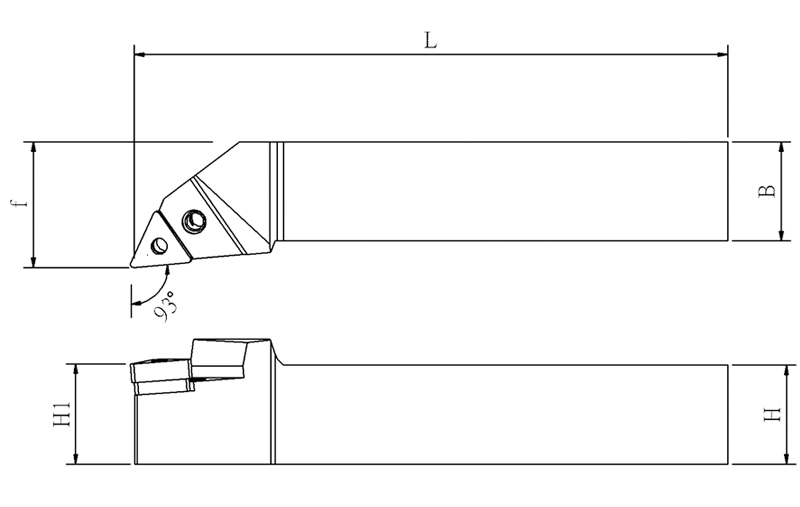

Model No.

Dimensions (mm)

Insert

Pin

Shim

Wrench

Screw

Clamp

Wrench

Screw

H

B

L

H1

f

MTJNR/L-1216K-16

12

16

125

16

21

TN..1604..

MCP3

TWS322

PL30

MCS3S-11

MCW3-P40

PL40

HS5025

MTJNR/L-1616-K16

16

16

125

16

21

TN..1604..

MCP3

TWS322

PL30

MCS3S-11

MCW3-P40

PL40

HS5025

MTJNR/L-2020K-16

20

20

125

20

25

TN..1604..

MCP3

TWS322

PL30

MCS3S-11

MCW3-P40

PL40

HS5025

MTJNR/L-2525M-16

25

25

150

25

32

TN..1604..

MCP3

TWS322

PL30

MCS3S-11

MCW3-P40

PL40

HS5025
