90゚-Indexable Face Milling Cutter | ||||||||||

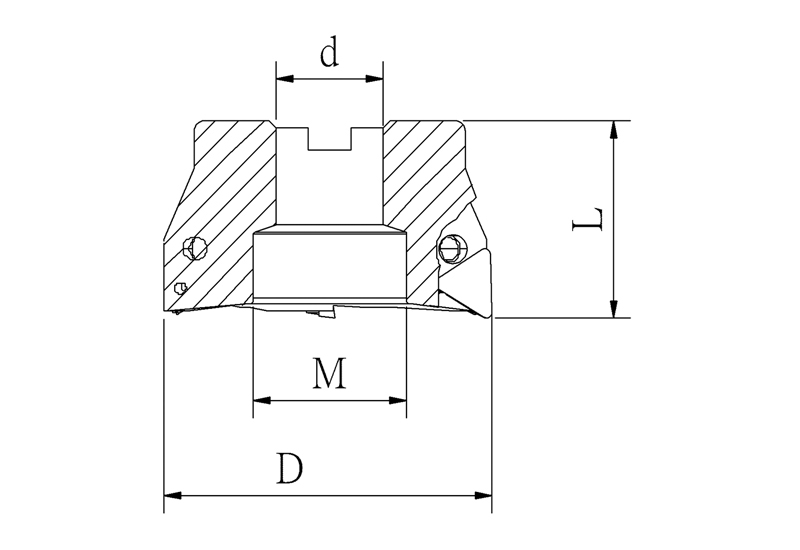

Model No. | Dimensions (mm) | Teeth | Cutter parallel | Screw of Cutter parallel | Insert | Screw of Insert | Wrench | |||
Right hand | D | d | L | M | ||||||
TP90-R063T3-25.4 | 63 | 25.4 | 55 | 20 | 3 | TP90-2R-2Q | TP-A4008 | TPMN220412 | TP-N8018 | 5.0Hex Wrench |
TP90-R080T4-25.4 | 80 | 25.4 | 55 | 37 | 4 | TP90-2R-2Q | TP-A4008 | TPMN220412 | TP-N8018 | 5.0Hex Wrench |
TP90-R100T5-31.75 | 100 | 31.75 | 58 | 45 | 5 | TP90-2R-2Q | TP-A4008 | TPMN220412 | TP-N8018 | 5.0Hex Wrench |
TP90-R125T6-38.1 | 125 | 38.1 | 55 | 51 | 6 | TP90-2R-2Q | TP-A4008 | TPMN220412 | TP-N8018 | 5.0Hex Wrench |
